Premium
Grader Max

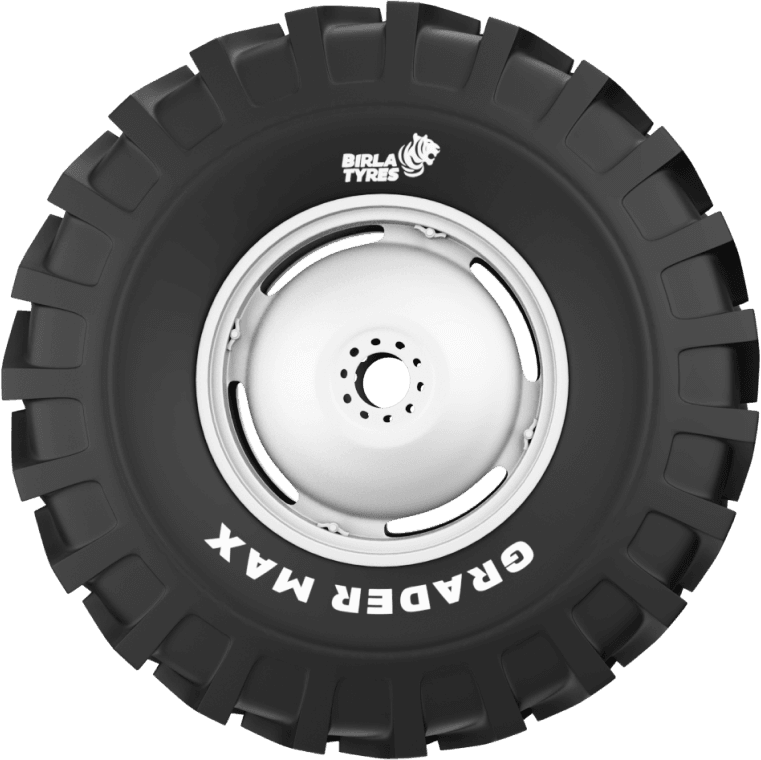

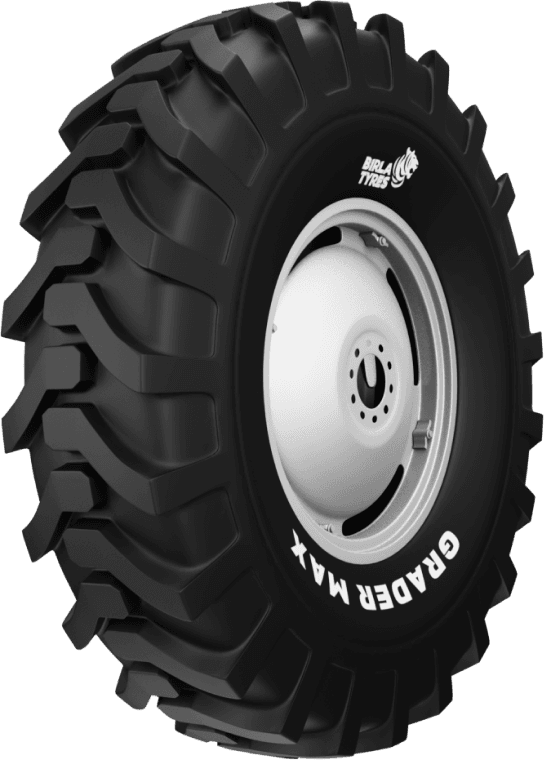

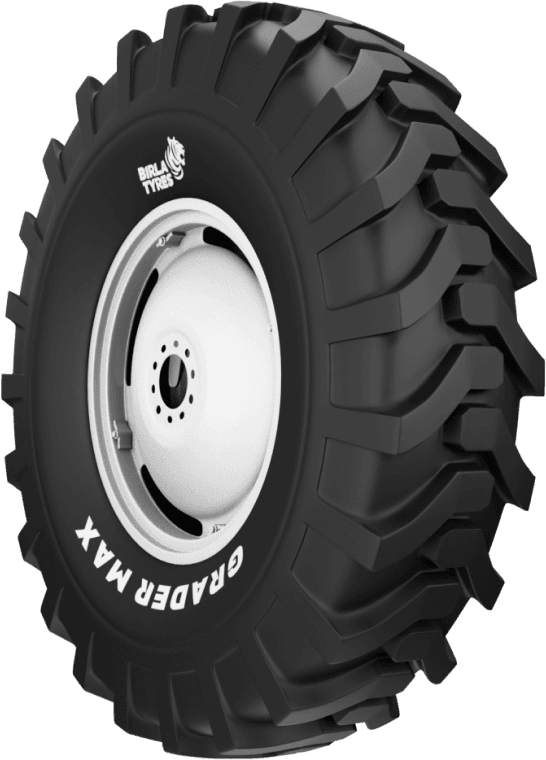

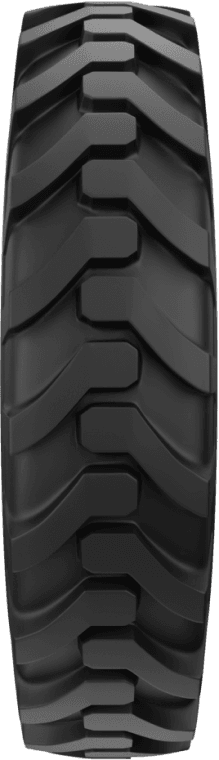

Premium Grader Tyre
- Robust cut resistant tread compound
- Superior casing strength to resist impact damage
- Reliable under extreme service conditions
Machinery
Grader
Applications
Scraping/ Grading
Technical Specifications
| Size ▲ | Pattern Name | Type (TT / TL) | Ply Rating | Machinery | Applications | Construction Type | Pattern Type | TRA Code | Rim Recommended | Sectional Width (mm) | Overall Diameter (mm) | Tube Valve Code | Rolling Circumference (mm) | Static Loaded Radius (mm) | Speed Radius Index (mm) | Load Index | Speed Symbol | Load Range (kg) | Inflation Pressure (Bar) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 13.00-24 | Grader Max | TL | 16 | Grader | Scraping/ Grading | Bias | Lug/Traction | G-2 | 8.00TG SDC | 338 | 1290 | --- | 3858 | 586 | 625 | --- | --- | 3250@40 KMPH/ 6500@10 KMPH | 65/ 87 |
| 13.00-24 | Grader Max | TT | 12 | Grader | Scraping/ Grading | Bias | Lug/Traction | G-2 | 8.00TG SDC | 338 | 1290 | TR 220A | 3858 | 586 | 625 | --- | --- | 2725@40 KMPH/ 5600@10 KMPH | 44/ 65 |
| 14.00-24 | Grader Max | TL | 16 | Grader | Scraping/ Grading | Bias | Lug/Traction | G-2 | 8.00TG SDC | 365 | 1345 | --- | 4023 | 609 | 650 | --- | --- | 3650@40 KMPH/ 7300@10 KMPH | 54/ 80 |
| 14.00-24 | Grader Max | TT | 12 | Grader | Scraping/ Grading | Bias | Lug/Traction | G-2 | 8.00TG SDC | 365 | 1345 | TR 220A | 4023 | 609 | 650 | --- | --- | 3075@40 KMPH/ 6300@10 KMPH | 40/ 62 |
