Kalapatthar XTR (ML)

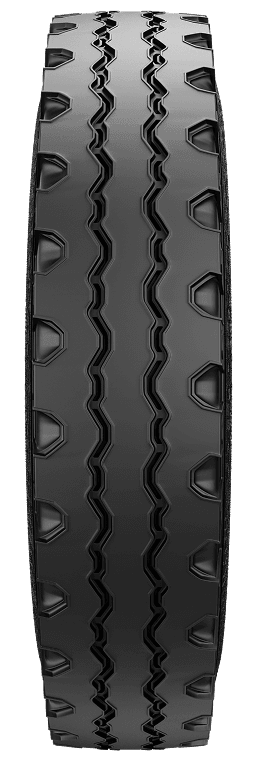

  • Specially designed rib pattern with traction lug: Provides excellent combination of steering and traction properties. Suitable for steering-axle of tipper truck.
  • Bigger Tyre with Wider Tread width: Increase load carrying capacity and reduces heat build-up due to larger air volume. Bigger contact patch for better traction.
  • Higher NSD with Optimized Centre Rib Design: Higher NSD for Maximum Mileage Special wider centre rib design enhance steering capability and mileage. Special Step Groove design with stone ejector restricts channel crack.
  • Aesthetic sidewall design: Inclusion of Stone textures to enhance visual appearance with functional requirements.
  • New Generation Tread compound for Superior Cut & Chip resistance with Low Heat build up: Excellent resistance to damage in rocky terrain. Low heat build up compound for cooler running.
  • Extra Strong Nylon Casing: Increases strength. Superior in Heavy Duty application Resistance to puncture.

Machinery

Tipper Truck

Applications

Mining/Logging


Technical Specifications

Size Pattern Name Type (TT / TL) Ply Rating MachineryApplications Construction Type Pattern Type TRA Code Rim Recommended Sectional Width (mm) Overall Diameter (mm) Tube Valve Code Rolling Circumference (mm) Static Loaded Radius (mm) Load Index Speed Symbol Load Range (kg) Inflation Pressure (Bar)
10.00-20Kalapatthar XTRTT18Tipper TruckMining/LoggingBiasRockML7.52861088TR 78A3254493144G28007.6
11.00-20Kalapatthar XTRTT18Tipper TruckMining/LoggingBiasRockML83001120TR 78A3350506146G30007.6
