Birla Tyres/OTR

/Kalapatthar XTL (ML)

Standard

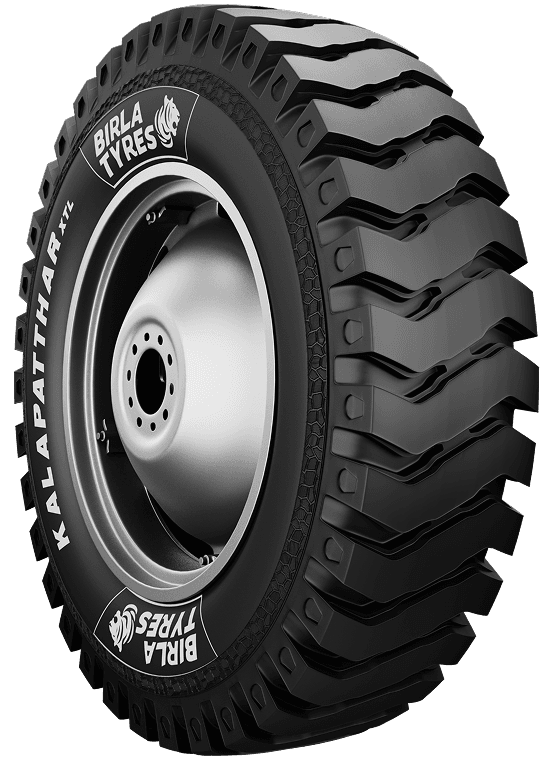

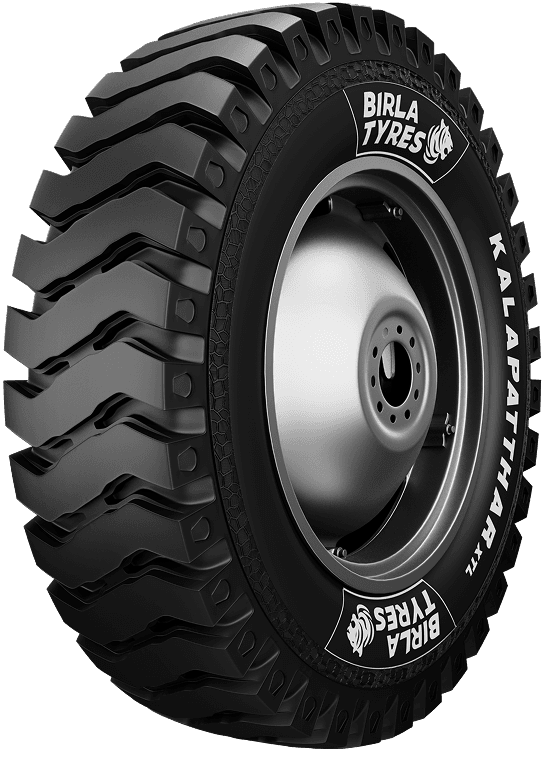

Kalapatthar XTL (ML)

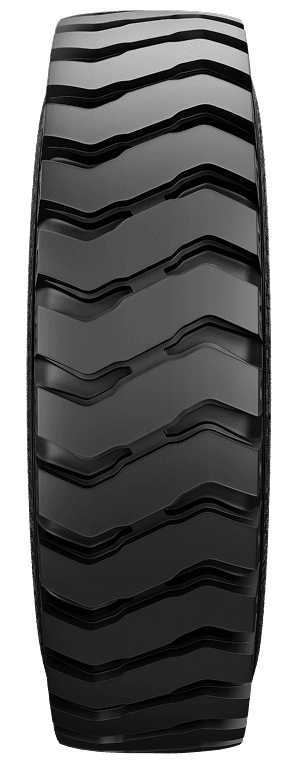

  • Non-Directional Tread design with extra mass at crown: Improve wear life, traction and durability in heavy-duty applications.
  • Bigger Tyre with Enhanced Tread width: Increase load carrying capacity and reduces heat build-up due to larger air volume. Bigger contact patch for better traction.
  • Higher NSD with Optimized Tie bar and Groove Design: Higher NSD for Maximum Mileage Tie Bar Prevents excessive shuffling of tread blocks and protects cut at Centre. Single Step Groove design restricts stone penetration.

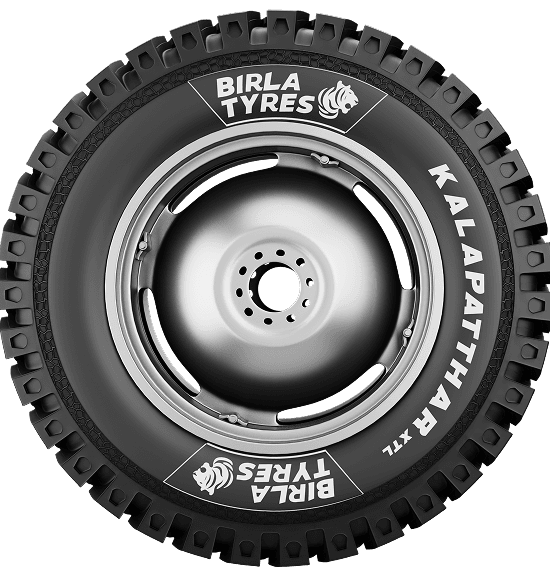

  • Aesthetic sidewall design: Inclusion of Stone textures to enhance visual appearance with functional requirements.
  • New Generation Tread compound for Superior Cut & Chip resistance with Low Heat build up: Excellent resistance to damage in rocky terrain. Low heat build up compound for cooler running.
  • Extra Strong Nylon Casing: Increases strength. Superior in Heavy Duty application Resistance to puncture.

Machinery

Tipper Truck


Applications

Mining/Logging


Technical Specifications

Size Pattern Name Type (TT / TL) Ply Rating MachineryApplications Construction Type Pattern Type TRA Code Rim Recommended Sectional Width (mm) Overall Diameter (mm) Tube Valve Code Rolling Circumference (mm) Static Loaded Radius (mm) Load Index Speed Symbol Load Range (kg) Inflation Pressure (Bar)
10.00-20Kalapatthar XTLTT18Tipper TruckMining/LoggingBiasRockML7.52801085TR 78A3245492144G28007.6
11.00-20Kalapatthar XTLTT18Tipper TruckMining/LoggingBiasRockML83001120TR 78A3350506146G30007.6
12.00-20Kalapatthar XTLTT20Tipper TruckMining/LoggingBiasRockML8.53201155TR 78A3454521151F34507.9
12.00-24Kalapatthar XTLTT20Tipper TruckMining/LoggingBiasRockML8.53201250TR 78A3738569155F38757.9
