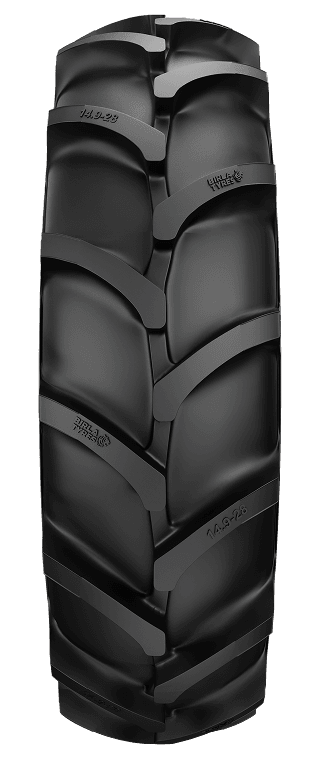

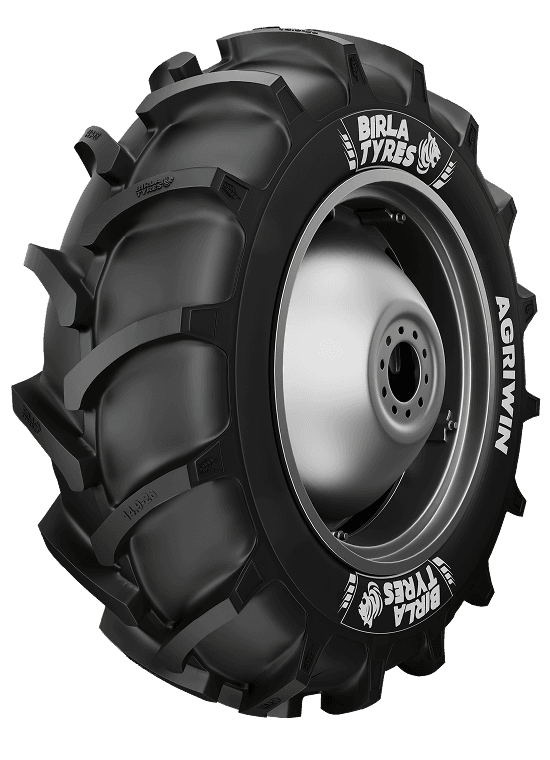

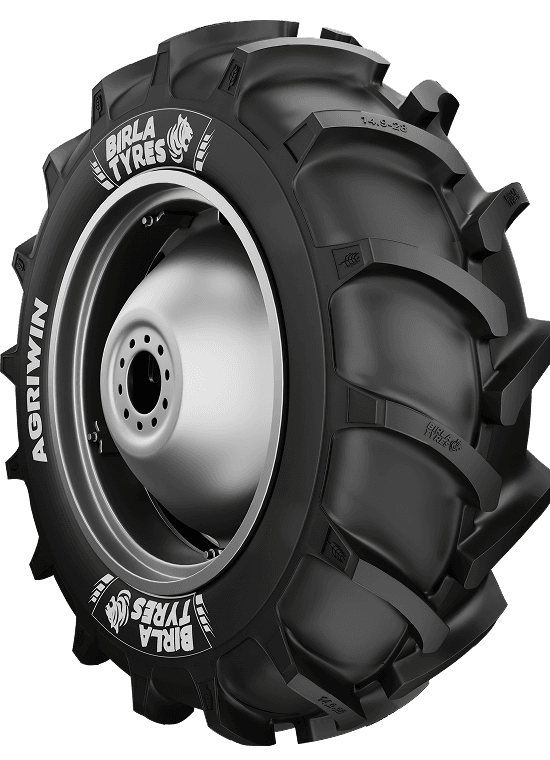

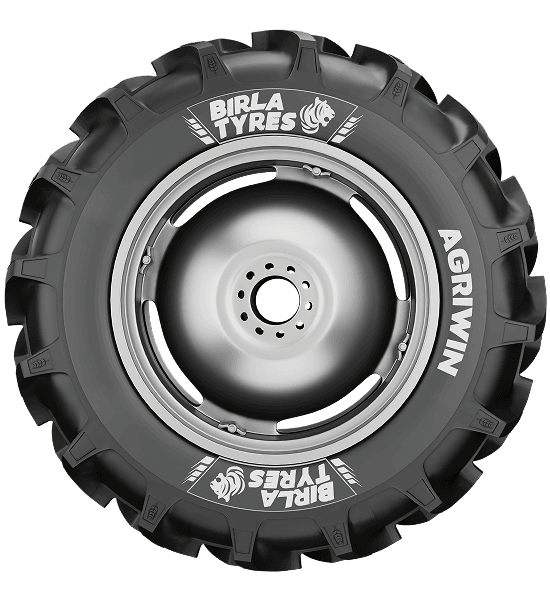

Agriwin(R-1W+)
Unmatched Puddling Performance
- Outstanding Traction & Grip: Optimized lug design with extra deep tread Perfect for wet and moist soil with enhanced grip.
- Built for Stability in Every Rotation: Stronger Tie Bar Prevents lug movement and strengthens the lug base.
- Less Slippage: Aggressive tread bars perform exceptionally in mud and clay. Wide lug gaps enable strong self-cleaning, preventing mud buildup and maintaining traction.
- Durability & Longevity: Built with a reinforced carcass and advanced tread compound for long-lasting life and strong durability.
Machinery
Tractor
Applications
Farming/ Haulage
Technical Specifications
| Size ▲ | Pattern Name | Type (TT / TL) | Ply Rating | Machinery | Applications | Construction Type | Pattern Type | TRA Code | Rim Recommended | Sectional Width (mm) | Overall Diameter (mm) | Rolling Circumference (mm) | Static Loaded Radius (mm) | Load Index | Speed Symbol | Load Range (kg) | Inflation Pressure (Bar) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8-18 | Agriwin | TT | 6 | Tractor | Farming/ Haulage | Bias | Lug/Traction | R-1W+ | W6 | 201 | 845 | 2527 | 389 | 94 | A6 | 670 | 1.9 |
| 9.5-18 | Agriwin | TT | 8 | Tractor | Farming/ Haulage | Bias | Lug/Traction | R-1W+ | W8 | 241 | 900 | 2692 | 411 | 105 | A6 | 925 | 3.0 |
| 9.5-24 | Agriwin | TT | 6 | Tractor | Farming/ Haulage | Bias | Lug/Traction | R-1W+ | W8 | 241 | 1066 | 3188 | 493 | 106 | A6 | 950 | 2.1 |
| 9.5-24 | Agriwin | TT | 8 | Tractor | Farming/ Haulage | Bias | Lug/Traction | R-1W+ | W8 | 241 | 1066 | 3188 | 493 | 112 | A6 | 1120 | 2.8 |
| 11.2-24 | Agriwin | TT | 8 | Tractor | Farming/ Haulage | Bias | Lug/Traction | R-1W+ | W10 | 284 | 1105 | 3305 | 509 | 116 | A6 | 1250 | 2.4 |
| 12.4-24 | Agriwin | TT | 8 | Tractor | Farming/ Haulage | Bias | Lug/Traction | R-1W+ | W11 | 315 | 1165 | 3484 | 534 | 121 | A6 | 1450 | 2.3 |
| 13.6-24 | Agriwin | TT | 8 | Tractor | Farming/ Haulage | Bias | Lug/Traction | R-1W+ | W12 | 355 | 1210 | 3619 | 552 | 123 | A6 | 1550 | 2.0 |
| 14.9-28 | Agriwin | TT | 12 | Tractor | Farming/ Haulage | Bias | Lug/Traction | R-1W+ | W13 | 390 | 1373 | 4106 | 629 | 137 | A6 | 2300 | 2.6 |
| 16.9-28 | Agriwin | TT | 12 | Tractor | Farming/ Haulage | Bias | Lug/Traction | R-1W+ | W15L | 447 | 1454 | 4349 | 662 | 143 | A6 | 2725 | 2.7 |
